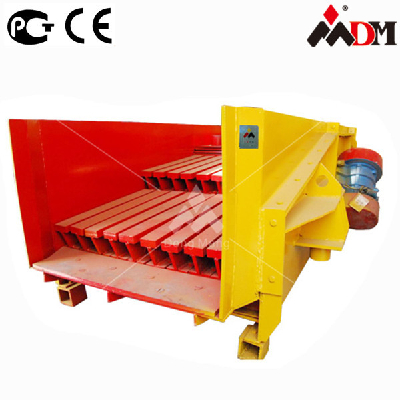

 ZSW-600x130 Vibrating Feeder

ZSW-600x130 Vibrating Feeder

  • Min.Order Quantity: 1 Set
  • Supply Ability: 999 Sets per Month
  • Port: Shanghai Port
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2007-04-05
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  2580x1430x600
  • Place of Origin:  China
  • Brand Name:  Shanghai Dongmeng Road & Bridge Machinery
  • Model Number:  GZD/ZSW
  • Weight: 1290.000 kg
Application of  DongMeng Vibrating Feeder

The Vibrating Feeder (Vibratory feeder) is used to transfer the large size materials and granular materials from Silo to

receiving device uniformly, periodically and continuously in the production flow and to feed materials into the crusher

continuously and uniformly also to screen the materials in the sandstone production line. The Vibrating Feeder is widely

used to match the crushing and sieving equipments in many industries including metallurgy, coal mine, mineral

dressing, building material, chemical, grinding,for vibrating grizzly feeder price.

Working Principle of DongMeng Vibrating Feeder
There are two eccentric shafts rotating at high speed at the same time from opposite directions, thus the strong centrifugal

force is formed. The component forces of centrifugal force along the vibrating direction will always overlap each other, then

counteract with that of vertical force from vibrating direction, then exciting force along single direction is formed to drive the

feeder vibrate along straight line. When materials are fed into the feeder, they may be thrown up and move like Para curve,

then fall down. The materials will move forward on the slope surface of the vibrating grizzly feeder price

Feature of GZD / ZSW Vibrating Feeder

1. It can divide into two types: vibrating feeder and linear feeder.
2. It can realize the continuously and uniformly feeding for the crushing machines, as well as can finish the coarse sieving on
material.


Technical Parameters of GZD / ZSW Vibrating Feeder

Model Hopper Size (mm) Max. Feed Size (mm) Production Capacity (t/h) Eccentric Shaft Rotation Speed (r/min) Motor Power (t) Weight (t) Overall Dimension (mm)
GZD-250×75 2500×750 300 50-80 1.5×2 1.29 2580×1430×600
GZD-300×90 3000×900 450 80-100 3.0×2 2.96 3050×1430×1550
GZD-370×100 3700×1050 500 100-150 3.7×2 3.7 3980×1878×866
GZD-490×110 4900×1100 580 120-280 5.5×2 4 5200×1900×950
GZD-500×120 5000×1200 600 200-400 5.5×2 5.2 5450×2000×900
ZSW-380×96 3800×960 500 100-160 500-720 11 4.21 3882×1684×1340
ZSW-490×110 4900×1100 580 120-280 500-800 15 5.41 4957×1841×1365
ZSW-590×110 5900×1100 600 200-350 500-800 22 6.05 6000×1841×1365
ZSW-600×130 6000×1300 600 400-560 500-800 22 7.5 6028×2580×2083
