- Size: 1000-1950mm
- Place of Origin: China
- Brand Name: Shanghai Dongmeng Road & Bridge Machinery
- Model Number: DMC
- Weight: 10800.000 kg

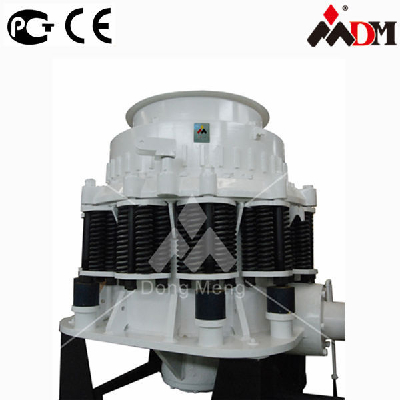

Brief Description of DMC Hydraulic Cone Crusher
Widely used in the Quarrying and Mining industries, the DMC Crusher is the result of utilizing part of the World famous Symons
Gyratory design, enhancing the crushing chamber to result in more crushing and less grinding action, and introducing a
hydraulically operated cavity clearance system to clear blockages. The machines are available in model sizes of 1000mm,
1160mm, 1300mm, 1380mm, 1650mm, and 1950mm. All models are available to be fitted with crushing cavities of Extra Fine,
Fine, Medium, or Coarse for hydraulic cone crusher
Advantages and Characteristics of DMC Hydraulic Cone Crusher
These machines feature a larger diameter shaft than a standard machine as well as an independent oil lubrication system,
accounting for strong, durable, and reliable operation. The efficient hydraulic jacking system allows for the quick clearance of any
tramp iron or other blockage that may occur, thereby greatly reducing down time. Change out times of the concave and mantle are
quick, as there are no fillers or bonding agents involved for hydraulic cone crusher
Main Technical Parameters of DMC Compound Hydraulic Cone Crusher
| Model | Chamber | Max Feeding Size(mm) | Min Discharge Size(mm) | Power | Crushing Capacity(t/h) | Weight | |||||||
| type | (kw) | Close discharge opening size(mm) | (Kg) | ||||||||||
| 6 | 10 | 13 | 16 | 19 | 22 | 25 | 38 | ||||||
| DMC1000 | C | 160 | 13 | 110 | 80 | 100 | 135 | 150 | 175 | 235 | 10800 | ||
| M | 115 | 10 | 110 | 65 | 75 | 90 | 120 | 135 | 150 | 10800 | |||
| F | 80 | 8 | 110 | 52 | 62 | 72 | 78 | 115 | 10510 | ||||
| DMC1160 | C | 180 | 13 | 132 | 115 | 135 | 150 | 180 | 200 | 260 | 15500 | ||
| M | 130 | 10 | 132 | 100 | 110 | 120 | 135 | 165 | 175 | 15500 | |||
| F | 90 | 10 | 132 | 80 | 105 | 110 | 140 | 15500 | |||||
| DMC1300 | C | 200 | 16 | 185 | 150 | 180 | 200 | 230 | 310 | 22300 | |||
| F | 102 | 10 | 200 | 90 | 115 | 145 | 160 | 22300 | |||||
| DMC1380 | C | 215 | 19 | 220 | 200 | 220 | 260 | 350 | 26300 | ||||
| F | 115 | 13 | 220 | 150 | 190 | 210 | 230 | 26300 | |||||
| DMC1650 | C | 235 | 22 | 250 | 265 | 310 | 420 | 37750 | |||||
| F | 130 | 13 | 250 | 180 | 210 | 235 | 255 | 275 | 37750 | ||||
| DMC1950 | C | 267 | 22 | 300 | 330 | 390 | 525 | 44300 | |||||
| M | 203 | 16 | 300 | 230 | 270 | 300 | 330 | 44300 | |||||
| Note: C=Coarse M=Medium F=Fine EF=Extra Fine | |||||||||||||
