- Size: 1450*1315*1296
- Place of Origin: China
- Brand Name: Shanghai Dongmeng Road & Bridge Machinery
- Model Number: PE
- Weight: 2800.000 kg

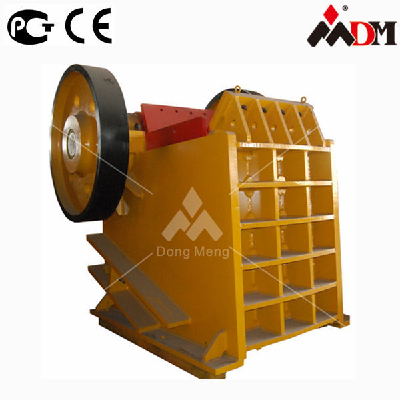

Application of DongMeng Jaw Crusher Specifications
The Dongmeng Mining machinery jaw crusher is used in primary crushing for stones and bulk materials .It processes various
kinds of ore with compression strength not more than 320mp. It has been widely applied in area of is widely used in mining,
quarry,metallurgy, building, highway, railway, construction wastes processing, water conservancy and cement production,
etc. .The jaw crusher is divided into the coarse jaw crusher and the fine jaw crusher, i.e. PE series and PEX series.stone ore jaw crusher for sale
Characteristics and Advantage of DongMeng Jaw Crusher Specifications
1.High reduction ratio and even final particles
2.Simple structure and easy to be maintained
3. Easy replacement of wearing and spare parts
4.Reliable operation and long service life
5.Convenient maintenance and low maintainance charges
6.Wide ranges of products series for stone ore jaw crusher for sale
Working Principle of DongMeng Jaw Crusher
The motor drives the eccentric shaft to rotate by the V-belt & the slot wheel, then the movable jaw moves back and forth to break
the materials in the crushing cavity which is composed of fixed jaw plate & movable jaw plate and side guard plate. When the
movable jaw rises, the angle between the fixed jaw and movable jaw gets larger, and the materials can be broken to reach the
crushing target. When the movable jaw is moving down, the angle between the fixed jaw and movable jaw becomes smaller
.the end products slide from the discharge opening at the bottom of the stone ore jaw crusher for sale
Technical Parameters of DongMeng Jaw Crusher
Model | feed opening(mm*mm) | max feed size(mm) | capacity(t/h) | shaft speed(r/min) | motor power(kw) | weight(t) | (mm) |
PE-250*400 | 250*400 | 210 | 5-20 | 300 | 15 | 2.8 | 1450*1315*1296 |
PE-400*600 | 400*600 | 340 | 16-65 | 275 | 30 | 6.5 | 1565*1732*1586 |
PE-500*750 | 500*750 | 425 | 45-100 | 275 | 55 | 10.1 | 1890*1916*1870 |
PE-600*900 | 600*900 | 500 | 50-120 | 250 | 55-75 | 15.5 | 2305*1840*2260 |
PE-750*1060 | 750*1060 | 630 | 52-180 | 250 | 110 | 28 | 2450*2472*2840 |
PE-900*1200 | 900*1200 | 750 | 140-260 | 200 | 110 | 50 | 3335*3182*3025 |
PE-1000*1200 | 1000*1200 | 850 | 160-300 | 200 | 110 | 51 | 3335*3182*3025 |
PE-1200*1500 | 1200*1500 | 1020 | 300-600 | 180 | 160 | 100.9 | 4200*3732*3025 |
PEX-250*1000 | 250*1000 | 210 | 16-52 | 330 | 30-37 | 6.5 | 1530*1992*1380 |
PEX-250*1200 | 250*1200 | 210 | 20-60 | 330 | 37 | 7.7 | 1900*2192*1430 |
PEX-300*1300 | 300*1300 | 250 | 20-90 | 330 | 55 | 11 | 1900*2192*1430 |
