- Size: 2400x1558x2660
- Place of Origin: China
- Brand Name: Shanghai Dongmeng Road & Bridge Machinery
- Model Number: PF
- Weight: 9500.000 kg

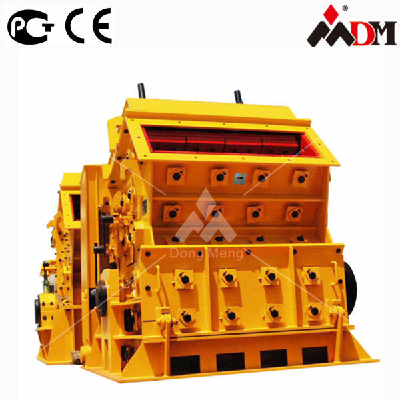

Application of DongMeng Impact Crusher
Secondary impact crusher generally used as secondary crushing step and max feed size not surpass 500mm, It is specially design
for crushing granite, the limestone, the river pebbles, and so on, by changing rotor and crushing cavity ,it also be used as primary
crusher according to customer ’ s requirement .it is widely applied to highway, reservoir, railway, airport and other fields that need
rock with cubic shape for vertical impact crusher manufacturer
Working Principle of DongMeng Impact Crusher
When being fed into the blow bar function area, the materials fall into breakage because of high-speed impact and get the
second breakage after being thrown to the impact plate installed above rotor, and finally rebound to the blow bar area to get
repeat crushing. The process repeats until materials are broken to the required size and then discharged from the bottom of
the secondary impact crusher, We can get our required size of the end products by adjusting the clearance between the
impact frame and the rotor frame for vertical impact crusher manufacturer
The Main Features and Advantages of DongMeng Impact Crusher
1.Final product with cubical shape.
2.High chromed blow bar, durable and longer lifetime
3.High manganese impact liner, longer lifetime
4.Self-equipped open-top device can quickly complete the replacement of wearing parts such as the hammer
5.High reduction ratio and crushing efficiency
6.hydraulic engineering, high speed railway and breakstone for buildings for vertical impact crusher manufacturer
Main Technical Parameters
Model | Feed opening size (mm) | Max feed size (mm) | Capacity (t/h) | Electric power (kw) | Weight (t) | Dimensions (L×W×H,mm) |
PF-1007 | 820×4700 | 300 | 24-45 | 55 | 9.5 | 2400×1558×2660 |
PF-1010 | 1170×720 | 350 | 50-80 | 75 | 10 | 2532×1985×2196 |
PF-1210 | 1090×465 | 350 | 80-130 | 110 | 14 | 2638×2037×2713 |
PF-1214 | 1440×465 | 350 | 100-160 | 132 | 18 | 2580×2400×2810 |
PF-1315 | 1532×560 | 500 | 140-200 | 200 | 19.3 | 2840×2740×2556 |
PF-1316 | 1690×859 | 500 | 150-220 | 220 | 19.5 | 3096×2850×2667 |
PF-1515 | 1580×696 | 500 | 240-290 | 280 | 28.5 | 3553×2835×3277 |
PF-1620 | 1240×2000 | 500 | 300-500 | 280*2 | 50 | 4000×3750×3850 |
PF-1822 | 1500×2250 | 1000 | 550-860 | 630 | 90 | 4260×3550×3640 |
