- Size: 3836x2750x2672mm
- Place of Origin: China
- Brand Name: Shanghai Dongmeng Road & Bridge Machinery
- Model Number: VSI
- Weight: 9000.000 kg

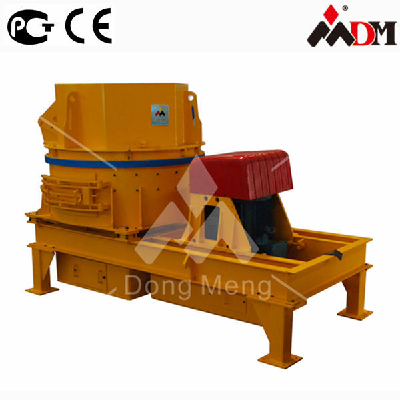

DongMeng VSI Sand Maker Application
VSI Sand maker is patented machine ,developed solely by Dongmeng.compared with conventional PCL type sand maker ,it is
with higher capacity and much light in volumn. It is working with single electric motor.
,applied for powder process of material product including metal and nonmetal ore, fireproof material, bauxite, diamond dust,
architectural materials, artificial sand and all kinds of metal and ore materials for vsi sand making machine price supplier
Advantages and Characteristics of VSI Sand Maker
1. High-efficiency, higher output but lower energy consumption, 30% power saving and 20% output increasing compared with
similar product vsi sand making machine price supplier
2. Perfect protection system, all quick-wear areas are equipped with guard plates.
3. NN type automatic air circulation system, less emissions pollution through interior air circulation system, zero energy consumption.
4.immune to moisture content ,the moisture content is raw moisture can reach 8%.
5. the upper roof can be lifted by hydraulic system for vsi sand making machine price supplier
6.lubrication oil station is adopted to lubricate the major bearing in circulation to ensure constant supply.
Working Principle of Dongmeng VSI Sand Maker
The materials fall into the impeller from the head of the machine and with the function of high-speed centrifugal force, they
strongly hit against and highly grind the other parts of the materials bypass flowing around the impeller in an umbrella form.
After mutual impaction and between the impeller and the machine shell, the materials will move like a vortex and will be
impacted, rubbed and pulverized many times. Then they will come to the required fineness controlled by screening equipment,
and discharge from the bottom of the vsi sand making machine price supplier
Main Technical Parameters
Model | Max. feeding (mm) | Power(Kw) | Impeller speed (r/min) | Capacity | Outer dimension | Weight(T) |
VSI-75 | 40 | 200 | 1740 | 100-180 | 3836*2750*2672 | 9 |
VSI-80 | 40 | 250 | 1740 | 150-220 | 3836*2750*2672 | 9.2 |
VSI-85 | 40 | 2*200 | 1630 | 250-350 | 5200*2620*3040 | 14.1 |
VSI-95 | 40 | 2*250 | 1630 | 300-450 | 5200*2620*3040 | 14.2 |
VSI-100 | 40 | 2*280 | 1300 | 350-550 | 5200*2620*3040 | 14.4 |
VSI-110 | 40 | 2*315 | 1000 | 400-650 | 5200*2620*3040 | 14.5 |
